Solvera Pro Exterior End Rafters
Sold exclusively through Polycarbonate Store Manufactured by renowned greenhouse experts, BC Greenhouse Builders
No se pudo cargar la disponibilidad de retiro
Finish and Secure the Outside Edge of Your Glazing System

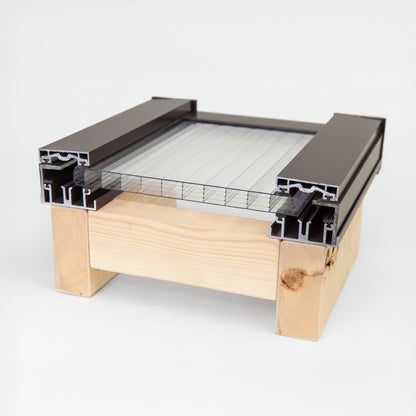

Solvera Pro Exterior End Rafters are used to secure glazing at the outer edge of a roof or wall assembly and create a clean finished perimeter detail.
Designed to install directly onto an existing framed structure, Exterior End Rafters use rubber gaskets and a pressure cap assembly to retain glazing without relying on traditional exposed screw-through-panel fastening methods.
These rafters are intended specifically for the outside edge of your project where an enclosed finished side is needed.
Suitable for both roof and vertical wall applications.
Compatible with Polycarbonate and Glass
Solvera Pro Exterior End Rafters are designed to retain 6mm Polycarbonate - 16mm Polycarbonate or Glass up to 16mm thick.
Not compatible with glazing thicker than 16mm.
Built for Simpler Installation
Each Exterior End Rafter includes the major components needed to secure and finish the outside edge of your Solvera Pro Glazing System installation.
Common applications include:
- Greenhouses
- Patio Covers
- Timber Frame Structures
- Conservatories
- Canopies
- Outdoor Enclosures
Optional Drip Flashing
Exterior End Rafters are available with or without Drip Flashing.
When selected, Drip Flashing helps direct water away from the edge of the glazing assembly and can provide a cleaner finished transition at roof edges and other exposed locations.
Projects that do not require this feature may choose the standard Exterior End Rafter configuration without Drip Flashing.
Intended as Part of a Complete Solvera Pro Glazing System
Exterior End Rafters are designed to be used as part of the complete Solvera Pro Glazing System and are not intended to be used as a standalone product.
For a complete installation, you will also need:
Most projects use one or two Exterior End Rafters to finish the outside edges of each roof or wall section.
Specs
Included Components
- Painted Base Rafter
- Base Rafter Rubber Gaskets
- Pressure Cap (Mill Finish)
- Pressure Cap Gaskets
- Painted Beauty Cover
- Painted End Cleat for Base Rafter
- Stainless Steel Fasteners (#2 Robertson Drive)
- Painted Edge Flashing (3/4" × 1")
- High Density Foam
Materials & Finish
- Rafter Material: 6063 Aluminum
- Beauty Cover Material: 6063 Aluminum
- Finish: Wet Baked Enamel
- Pressure Cap Finish: Mill Finish Aluminum
- Fasteners: Stainless Steel
